Ultra-thin type Intumescent Fire Resistance Paint For Steel Structure

Short Description:

Ultra-thin steel structure fireproof coating is a new top grade environment-friendly product developed under national GB14907-2018. includes waterbased and solvent based.

Send email to us

MORE DETAILS

Vedio
Product Formation
Product Feature
Product Application
Technical Data
Product Construction
Double Coating Interval Time
Surface Treatment
Construction Condition
Auxiliary Paint

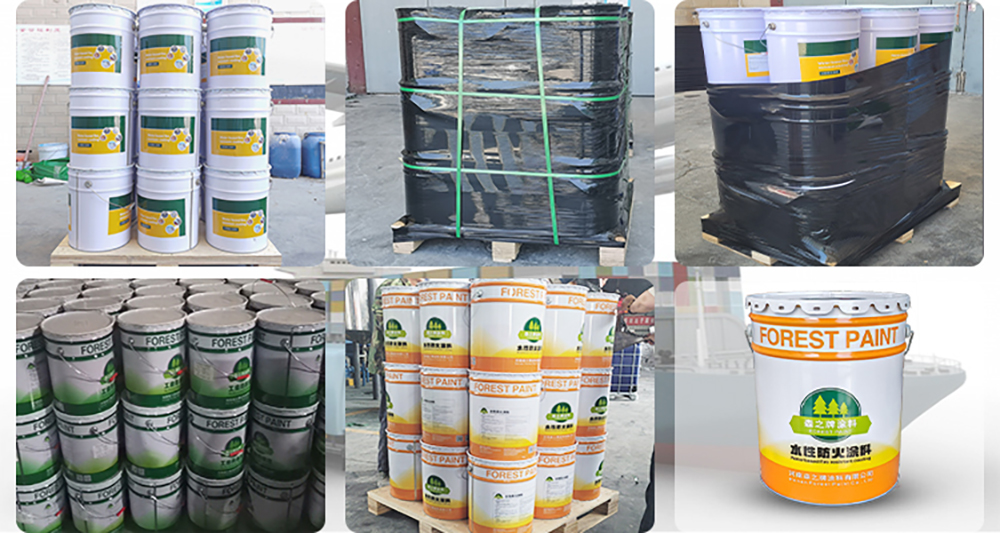

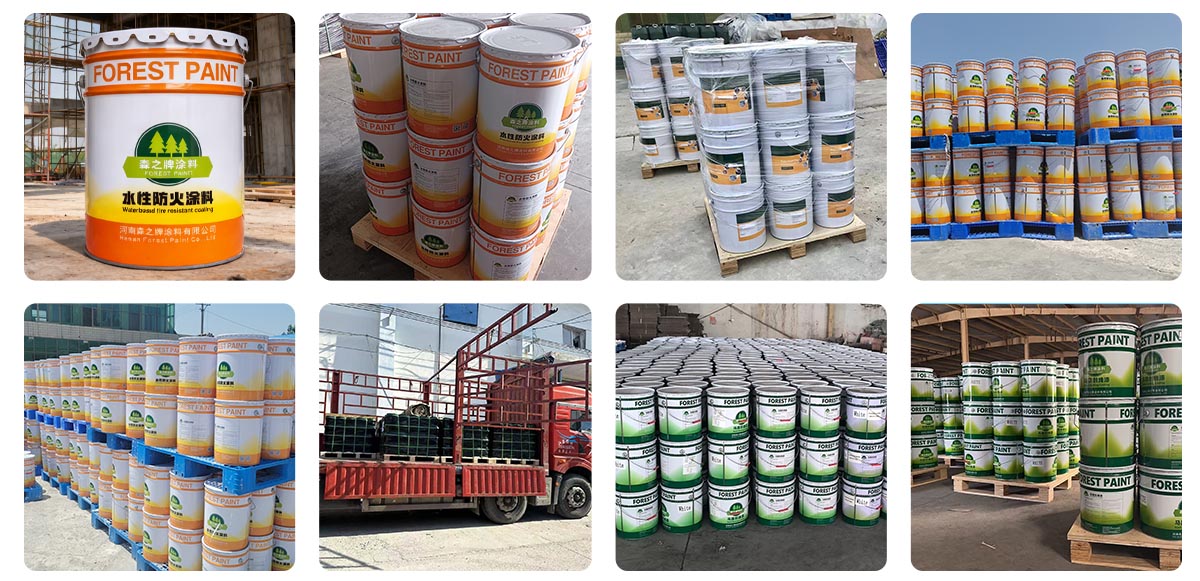

Product Package

*Vedio:

*Product Formation:

The coating has high bonding strength, can be prepared in a variety of colors, and has good decorative effects. When the paint brush is on the surface of the steel structure, it can play the role of fireproofing, anti-corrosion and decoration. When the fire is encountered, the surface of the coating will expand rapidly to form a uniform and dense fire-proof and heat-insulating layer, thereby achieving the fire protection effect of the steel structure.

*Product Feature:

The ultra-thin steel structure fireproof coating is the thinnest in the fireproof coating type, the coating appearance is good, and the corrosion resistance of the steel structure is superior.

*Product Application:

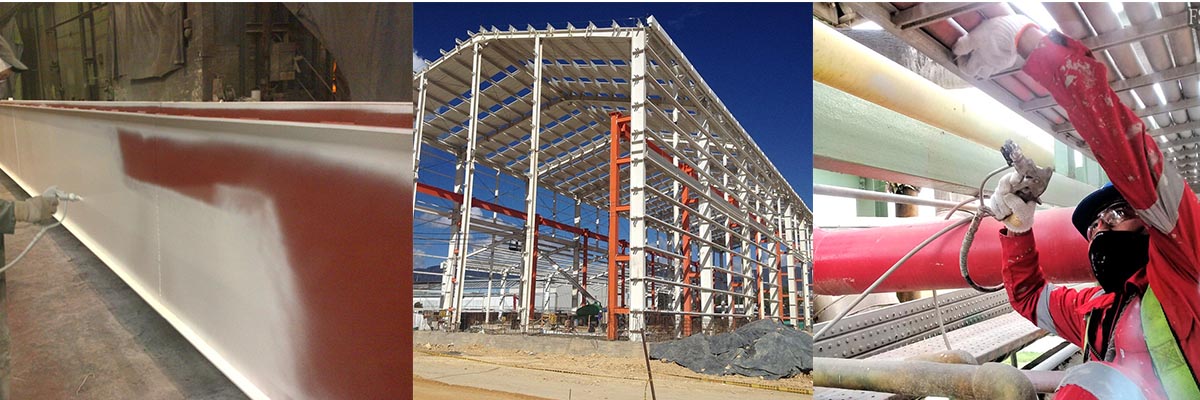

It is widely used in indoor and outdoor steel structures such as sports and entertainment venues, industrial plants, stations, airports, ships, and chemicals.

*Technical Data:

No.	Item	Standard
1	State in a container	No caking, uniform state after stirring
2	Appearance and color	appearance same color after drying
3	Surface dry time, h	≤8
4	Bond strength, Mpa	≥0.2
5	Water resistance, h	≥ 24 h, no layer, no foaming and no shedding.
6	Fire resistance limit, h	0.5h	1h	1.5h	2h
7	Thickness of film	1.0mm	1.6mm	2.4mm	3.3mm
8	Coverage	1.8-2kg/㎡/mm

*Product Construction:

1.Please do the necessary substrate treatment such as derusting ,dedusting and degreasing, and then apply the anti-corrosive primer paint such as zinc rich primer paint or epoxy mio paint.

2.Make sure the paint is fully mixed before use.

3.Please do not use this product when moisture content RH>90 or T<5℃.

4.No fire or eletric welding work allowed before the coating is hard dry.

*Double Coating Interval Time:

Temperature	5℃	25℃	40℃
Shortest time	24h	18h	6h
Longest time	No limited

*Surface Treatment:

All surfaces must be clean, dry and free of contamination. Before painting, should be assessed and treated in accordance with standard of the ISO8504:2000.

*Construction Condition:

Base temperature is not less than 0℃, and at least above the air dew point temperature 3℃, the relative humidity of 85% (temperature and relative humidity should be measured near the base material), fog, rain, snow, wind and rain is strictly prohibited construction.
